Clean Bench Plus

Clean Bench is a laminar flow work cabinet with HEPA filtered air flow over the work surface protecting the products against contamination. The contaminated air is blocked outside the work area.

There are two types of laminar airflow: vertical and horizontal. The air intake is from the environment and filtered through a HEPA filter

Application: Cleanrooms, laboratories, food manufacturers, biology/science research, electronics industry, optoelectronics industry, semiconductor industry, etc.

Features:

Air velocity adjustment: Five-speed
Digital display of differential pressure value
Abnormal display and alarm
Light switch
Filter replacement alert
Differential pressure limits alert
EC brushless frequency converter motor
Online display of temperature & humidity (option)
UV lamp + Timer (option)
Online display of air velocity(option)
Customize service available

Quantity:
Availability:





Inquire Add to Basket

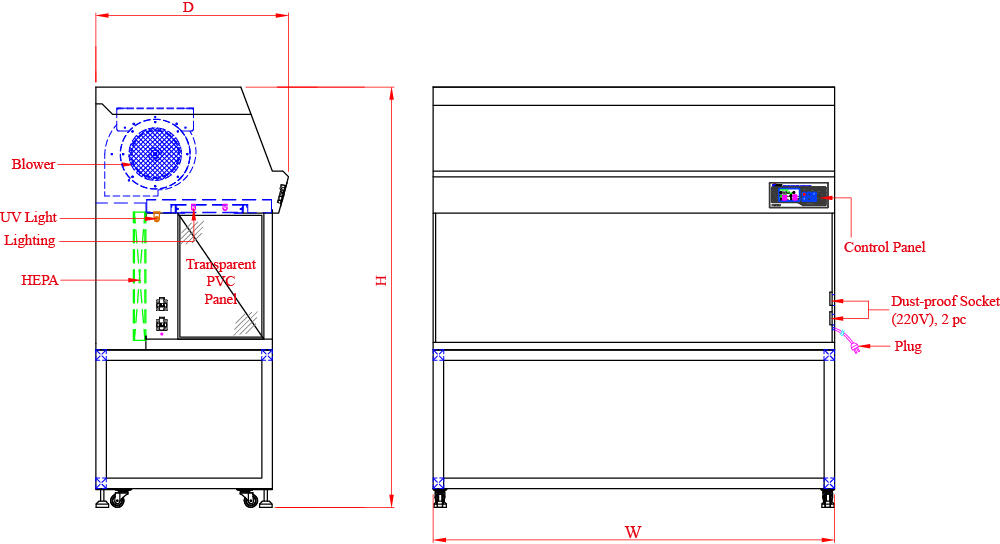

Vertical Laminar Air Flow Clean Bench (Plus)
Item		3 feet	4 feet	5 feet	6 feet
External Dimension (mm)		W940D917H2000	W1240D917H2000	W1540D917H2000	W1840D917H2000
Useful Dimension (mm)		W900D720H600	W1200D720H600	W1500D720H600	W1800D720H600
Material		1.6t Powder-coated steel / 1.5t Stainless Steel
HEPA	Size (mm)	87572095, 1 pc	117572095, 1 pc	147572095, 1 pc	177572095, 1 pc
	Features	Aluminum frame, Efficiency 99.99% @ 0.3 um
Pre- filter	Size (mm)	62539522, 1 pc	62539522, 1 pc	62539522, 2 pc	62539522, 2 pc
	Features	Paper frame, 22t
Air Velocity (m/s)		0.5
Worktop Material		SUS 304
Lighting		T8 (2 feet), 1 pc	T8 (3 feet), 1 pc	T8 (4 feet), 1 pc	T8 (4 feet), 1 pc
Blower		DC, 1 pc
Accessory		Differential pressure gauge, Light switch, Electric socket, Blower switch
Power Supply		AC 1Ø □110V □220V 50/60Hz
Power Consumption (kW)		0.3	0.3	0.5	0.5
Optional Accessory		Ionizing Net

Horizontal Laminar Air Flow Clean Bench (Plus)
Item		3 feet	4 feet	5 feet	6 feet
External Dimension (mm)		W940D917H2000	W1240D917H2000	W1540D917H2000	W1840D917H2000
Useful Dimension (mm)		W900D600H600	W1200D600H600	W1500D600H600	W1800D600H600
Material		1.6t Powder-coated steel / 1.5t Stainless Steel
HEPA	Size (mm)	86063550, 1 pc	116063550, 1 pc	146063550, 1 pc	176063550, 1 pc
	Features	Aluminum frame, Efficiency 99.99% @ 0.3 um
Pre- filter	Size (mm)	62539522, 1 pc	62539522, 1 pc	62539522, 2 pc	62539522, 2 pc
	Features	Paper frame, 22t
Air Velocity (m/s)		0.5
Worktop Material		SUS 304
Lighting		T8 (2 feet), 2 pc	T8 (3 feet), 2 pc	T8 (4 feet), 2 pc	T8 (4 feet), 2 pc
Blower		DC, 1 pc
Accessory		Differential pressure gauge, Light switch, Electric socket, Blower switch
Power Supply		AC 1Ø □110V □220V 50/60Hz
Power Consumption (kW)		0.3	0.3	0.45	0.45
Optional Accessory		Ionizing Net
